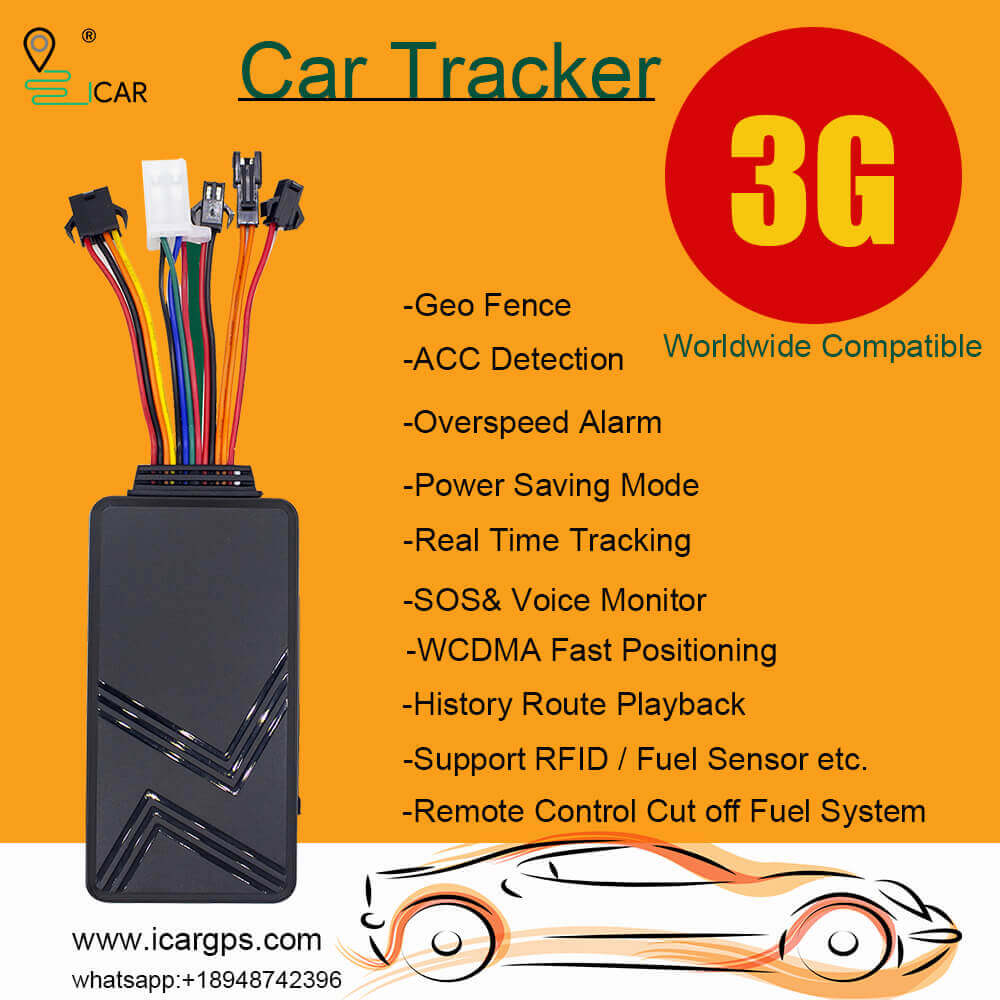

3G Car Tracker IK740
Description:
With the top quality craftmanship, IK740 3G Car tracker is a fully featured, competitive and cost effective 3G GPS tracker developed for vehicle, motor and bus tracking.
It provides you with clear real-time tracking details, including location, route, flashback, etc., even in harsh environments. It supports remote fuel/electricity cutoff and lets you know the ignition status. Wherever you go, its instant alert notification allows you to react immediately and accordingly.
Known for its small size and professional live tracking, the IK740 3G Car Tracker features GNSS and 3G/GSM connectivity and battery backup. The 3G car tracker has a built-in GNSS, 3G antenna. It has an RS485/RS232 data interface and is capable of connecting to a variety of third-party external devices, such as RFID, Fuel Sensor and Camera etc. It is perfectly suited for applications where the location of remote objects needs to be acquired: fleet management, car rental companies, cab companies, public transportation, logistics companies, personal cars, etc.
This 3G GSM and GPS tracking solution will locate and track the whereabouts of your vehicle in real time on your computer or smartphone via the Internet. The device is easy to install, with only 2-4 wires to connect. Connecting 2 wires mainly enables real-time positioning function and some basic functions such as tracking route playback, vibration alarm, electronic fence, etc. If you connect 4 wires, it adds ACC detection and remote power off function to the basic real-time tracking and positioning function.
It works by sending the GPS coordinates of the vehicle via GSM network to an online tracking service that displays the location on Google Maps. The tracking platform or app sends an alert when the vehicle leaves a predefined area or exceeds a predefined speed. You can manage multiple locators simultaneously under the same account through the mobile tracking app for the purpose of supervising multiple vehicles at the same time, or multiple people can manage the fleet online at the same time.
The built-in rechargeable lithium-ion battery will keep the device operational for up to 4-5 hours when power is disconnected, which can help you locate the vehicle if it is stolen and abandoned.
Features:
Parameters:
GPS Device Number | 3G Car Tracker IK740 |
Device Dimension | 87mm*50m*12mm |
Device Weight | 65g |
Telecom Chipset | EC21 |
Network | LTE(different for countries) |
Frequency Band | LTE, B1 , B3 , B5 , B8 |
Location Chipset | Ublox 7020 |
Location Way | LBS/AGPS/GPS/Glonass |
Location accuracy | <10m |
Tracking sensitivity | -162 dBm |
Humidity | 5%--95% |
Internal Battery | 3.7V 140mAh Li-Polymer battery |
Standby Time | 1-3 hours |
Magnet | No |
Sim Card | Standard Sim Card |
GPS Mode Accuracy |
100-2000m |
Warning: Sim card is not included in this device. You have to buy and insert a SIM card before the device work.

Package Contents:
- 1 x 3G IK740 Car Tracker
- 1 x User Manual Card
- 1 x 12V Relay
- 1 x Power Wire
- 1 x SOS
- 1 x Microphone
- 1 x Gift Box
